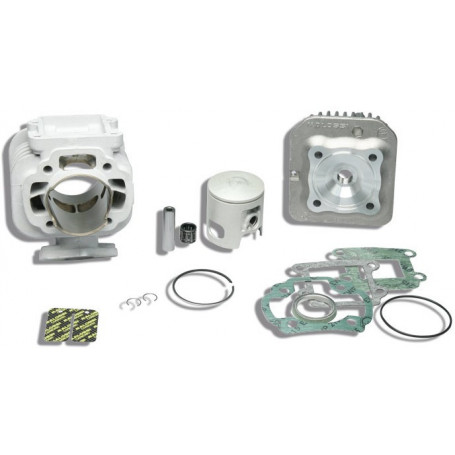

Malossi MHR Alum. single segment 70 CC for Aprilia Amico, SR-94, MBK Booster 50, Stunt, Yamaha BW'S, SPY, Zuma
TECHNICAL FEATURES cylinder kits
CYLINDER
- Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures.
- Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C.
- Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity).
- Inner surface coating: effected using silicon carbide on a nickel matrix with heat treatment that guarantees extreme hardness (around 600 HVO, 1/5) and excellent resistance to wear.
- Internal machining of cylinder: using special machines that allow a degree of finish on the cylinder barrel walls whose roughness corresponds with the angles set at the design stage (grinding process using special stone).
- Port and exhaust diagrams: designed and manufactured especially for racing. The definition of the port and exhaust diagrams has requested considerable effort on the part of our engineers both on engine test stands and the circuits on which the trophy is held.
PISTON
- Material: special aluminium alloy with a very high percentage of silicon and titanium that guarantees both excellent heat resistance and strain strength upon temperature variation.
- External coating: graphite coating that guarantees a very low friction coefficient
- Structure: reinforced in order to offer resistance to the stress suffered by cylinder units used for top-level competition, but at the same time light enough to reduce inertial force.
- Ring: 1 mm nodular-cast-iron single ring with rectangular cross section and hard-chromium coating on outer surface.
PISTON RINGS
- Rings in very strong modular cast iron with ground, wear-resistant, hard chrome metal-spray coating on the contact surface.
HEAD
- Material: special alluminium alloy with a very high heat exchange coefficient.
- Geometry of heat exchange surfaces recalculated and increased.
- Combustion chamber completely-designed to obtain a high compression ratio (15.8:1) with a very high turbolece.
- Machining: numerically controlled machines.
Compatible with:
- Aprilia: SR 50 Min.AC 94-_S
- Mbk: Booster 50 euro 0-1_S, Booster 50 euro 2_S, Stunt 50 euro 0-1_S, Stunt 50 euro 2_S
- Yamaha: BW's 50 euro 0-1_S, BW's 50 euro 2_S
Compatibility
- Aprilia
- SR 50 Min.AC 94-_S
- MBK
- Booster 50 euro 0-1_S
Booster 50 euro 2_S
Stunt 50 euro 0-1_S
Stunt 50 euro 2_S - Yamaha
- BW\'s 50 euro 0-1_S
The prices shown are valid only for online purchases and not in-store
Denni on 2023-12-11 22:23:25 | Question: che spinotto è |
Answer: Spinotto da diametro 10, stesso di quello di serie |
|
