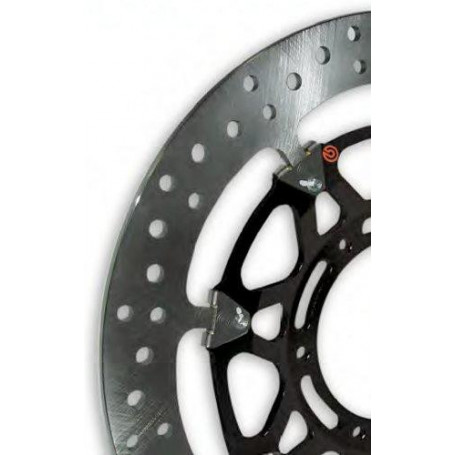

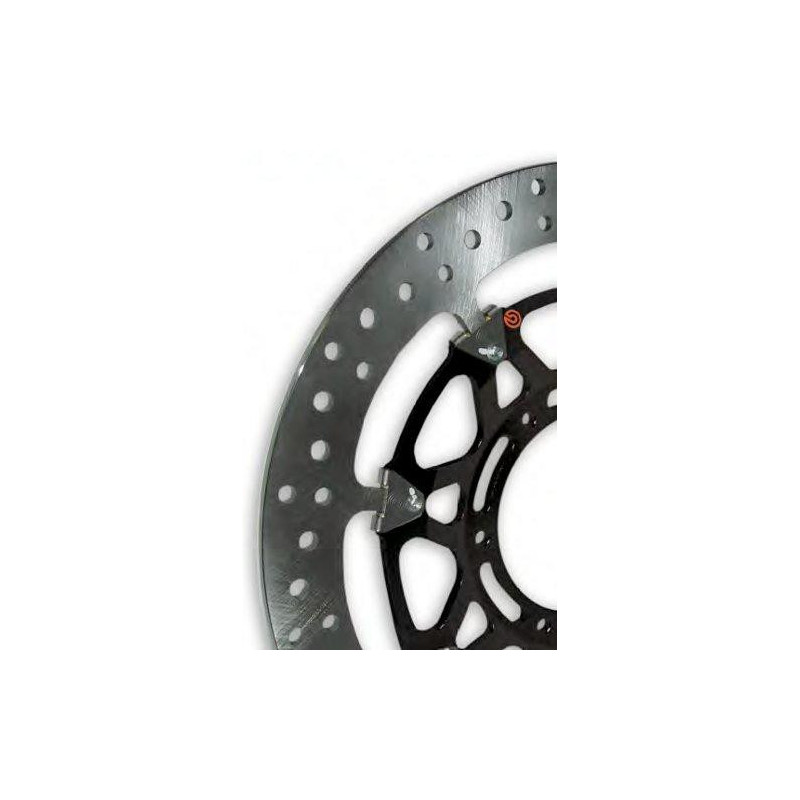

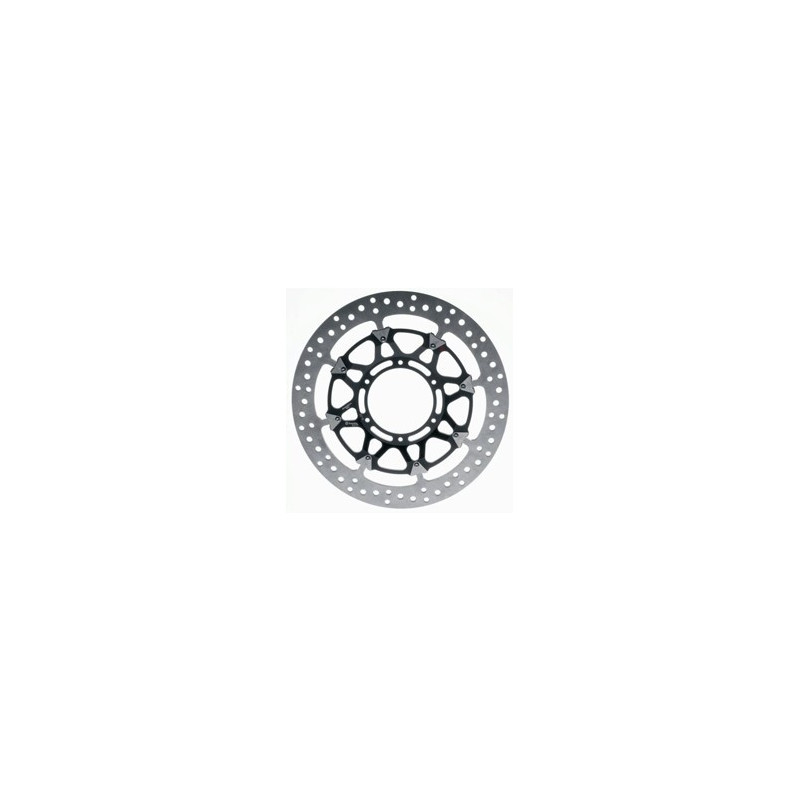

Brembo T-Drive brake Front Rotor (1 disc), for Yamaha R1 04-06, FZ1/Fazer 1000,on R1 07-, R6 05- models works only combined with spacers, dim 320x132 mm

A product of experience acquired in SBK and MotoGP, the brand new T-Drive is the next generation of product reflecting the natural evolution of Brembo brake discs engineered for competition use. The key feature of the new T-drive system is an innovative method of transferring brake torque from disc to wheel, in which the conventional system of cylindrical bobbins are replaced by a set of eight “T” pins on the disc and eight corresponding segments formed in the disc carrier. The special shape of the pins was developed following a targeted study of machining tolerances and ensures braking torque can be transmitted more efficiently, by offering increased resistance to thermal and mechanical stresses, especially under extreme operations such as those encountered in competition. The connection between disc and carrier is assured by a special guillotine type interface (patent applied for), which allows both radial and axial float, as well as reducing the overall weight of the disc. This brings considerable advantages in terms of enhanced rideability, when compared with the conventional disc-carrier interface using round bobbins. Compatible with: - Yamaha: FZ1 Naked 06-_M, FZ1/Fazer 1000 06-_M, R1 04-06_M, R1 07-08_M, R6 01-02_M, R6 05_M, R6 06-07_M, R6 08-15_M
