Dedicated to the bikes having some space problems on the upper attachment, the new CLU is the High Performance Mono shock for street bikes.
The compensation tank is separated from the body, in order to get more free positioning, and is linked with a flexible hose for very high pressurese, internally in non-deformable Teflon and externally in metal plait, in order to avoid pressure vibrations on the suspensions oscillations.
Technical features:
Nitrogen pressurized, with oil/gas separator aluminum floating piston in the remote compensation tank. 16mm diameter piston rod, with anti-friction treatment and high sliding bushing; upper and lower attachment heads in aluminum alloy worked by CNC machines from a single block.
Settings:
Adjustable Length (range 8 mm)
Spring Preload whith millimetric ring (can be operated with the supplied tool)
Double Compression (High Speed in 20 clicks and Low Speed in 24 clicks)
Rebound (24 clicks).
The final code "11" identifies the spring in Red colour (for Sport Bike), and the code "12" specified the spring in Black colour (for Touring/Classic Bike)

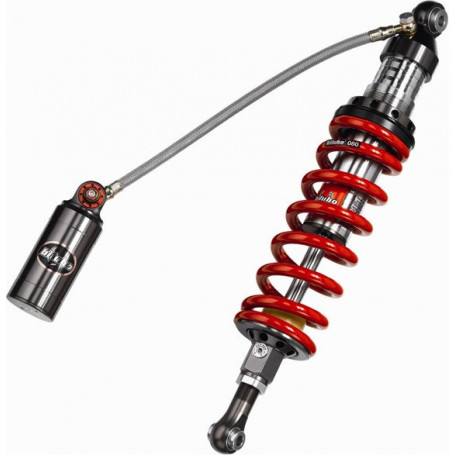

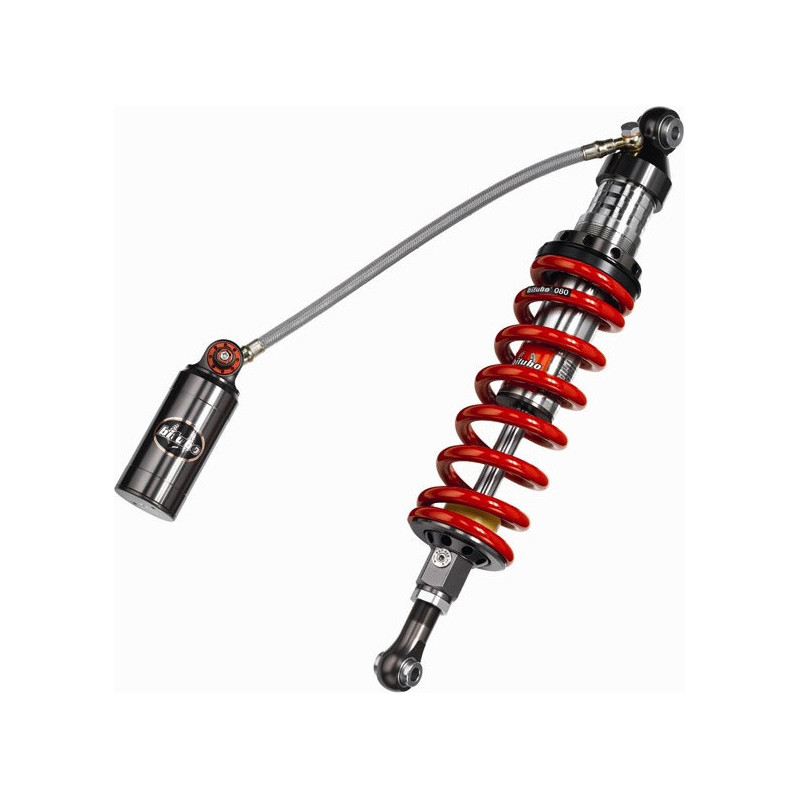

NOTE: the photo is generic for CLU; some characteristics (example: attachment) can be different for each application
Compatible with:
- Honda: Hornet 600 98-02_M
Compatibility
- Honda
- Hornet 600 98-02_M
